Name: Amorphous Alloy Cores for Energy-Efficient Transformers & Inductors
Availability: InStock

CATEGORÍAS DE PRODUCTO

nuevos productos

Feature	Performance Benefit
Ultra-low no-load loss	Only ~1/5 of silicon steel cores, reduces long-term energy costs
High saturation flux density (~1.56T)	Enables smaller, lighter component designs
Wide frequency range	Suitable for 50Hz distribution to high-frequency power electronics
Low noise & low magnetostriction	Ensures quiet, stable operation in sensitive environments

Process Type	Description	Best For

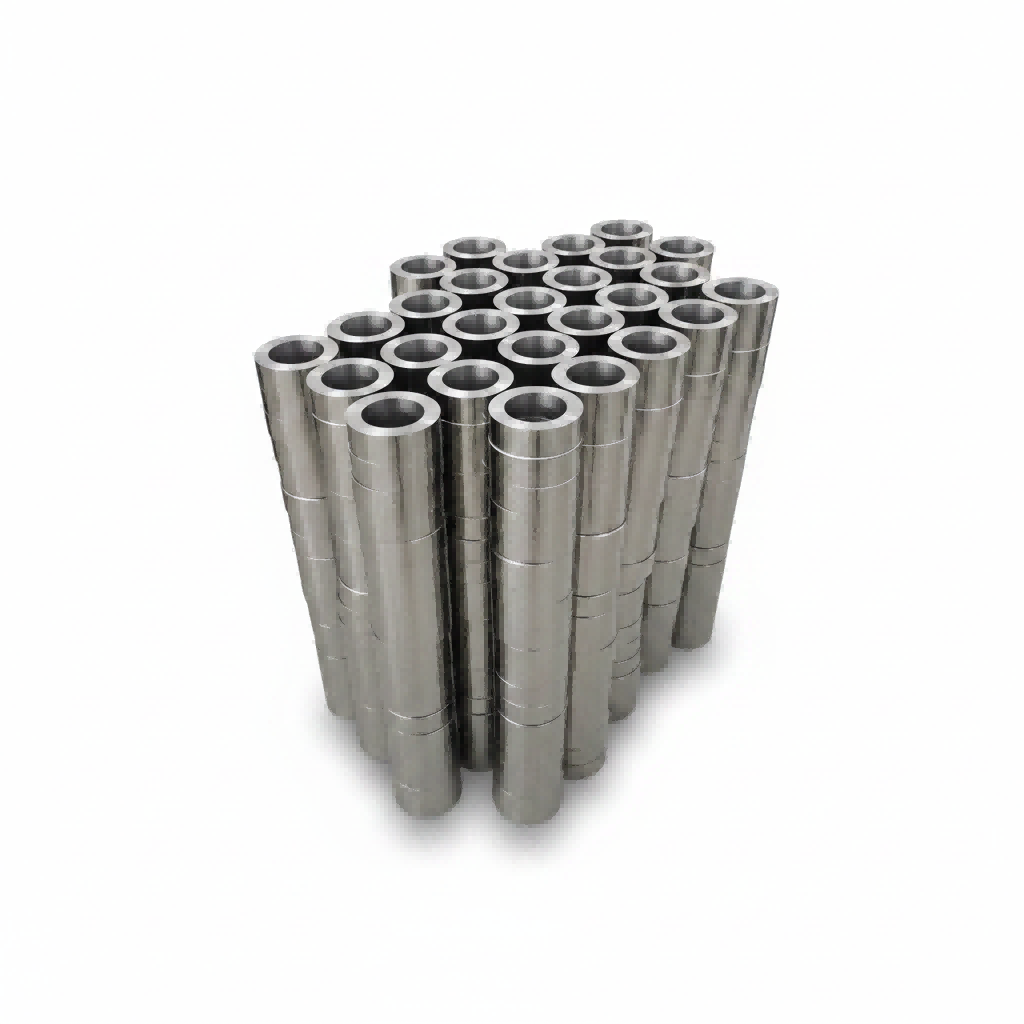

Non-Annealed	Raw wound core, no heat treatment	Low-cost, non-critical applications with basic magnetic performance needs

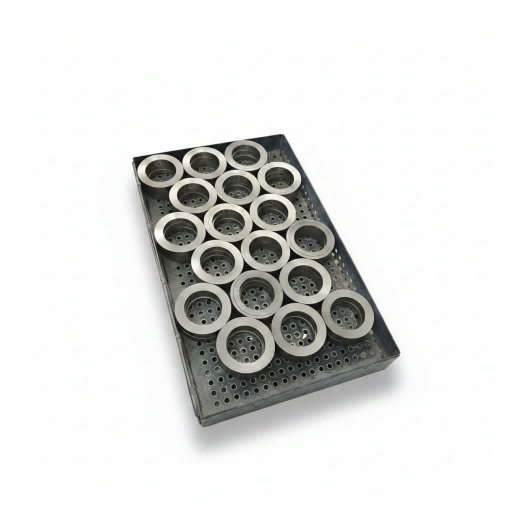

Annealed	Precision heat-treated to optimize magnetic properties	Standard transformers, inductors requiring stable permeability and low loss

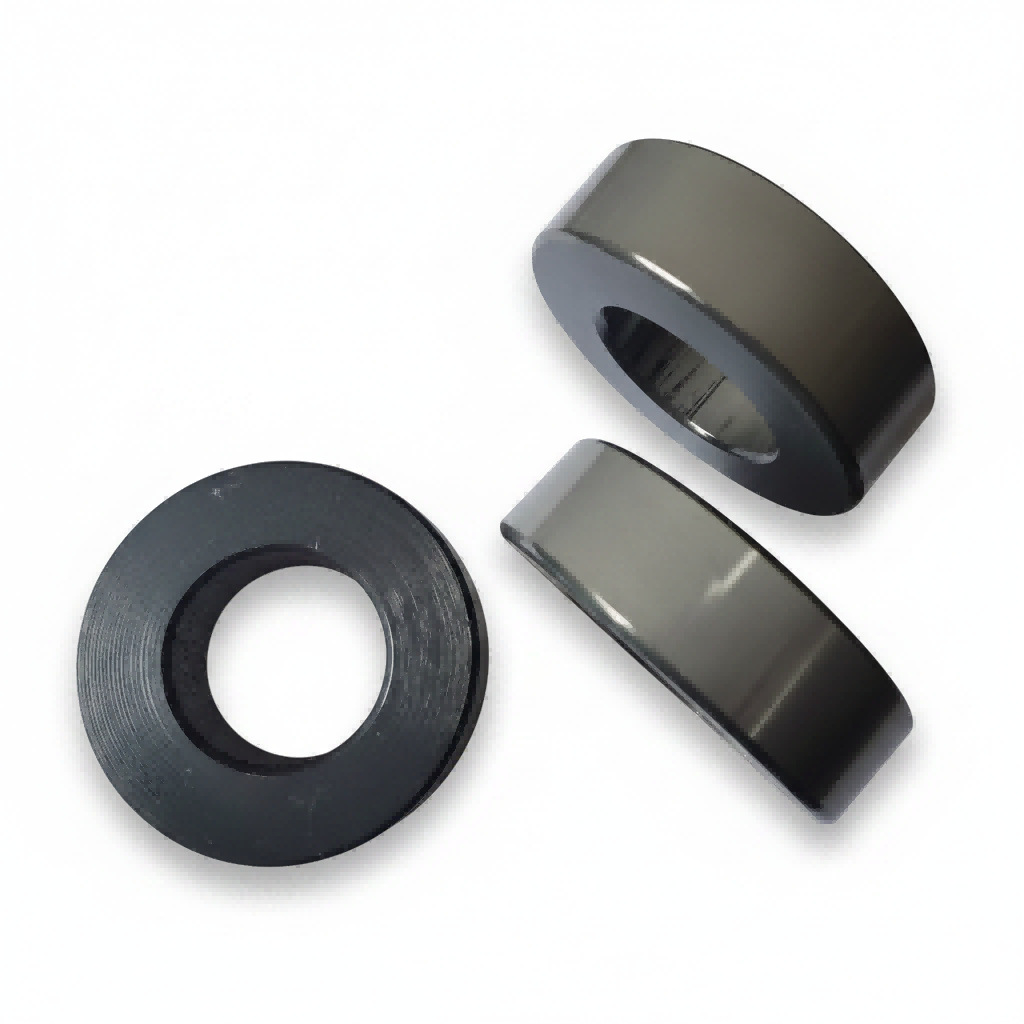

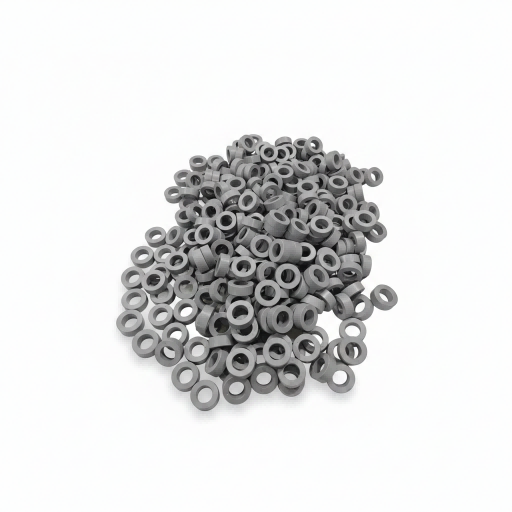

Epoxy Coated	Encapsulated with epoxy resin for insulation & mechanical protection	Harsh environments, high humidity, or vibration-prone installations
With Housing (Cased)	Pre-assembled in plastic/metal enclosures, ready for direct use	Fast integration into modules, common-mode chokes, and compact power supplies

Parameter	Typical Value
Material	Fe-based amorphous alloy (1K101 grade)
Ribbon Thickness	25µm (standard)
Saturation Flux Density (Bs)	1.56–1.59 T
Core Loss (Pcv)	≤0.2 W/kg @ 50Hz, 1.3T
Operating Temperature	-40°C ~ +130°C
Available Shapes	Toroidal, rectangular, C-core, oval, custom profiles

Amorphous Alloy Cores for Energy-Efficient Transformers & Inductors

1. Product Introduction
